Chat Proxy Server Documentation

Introduction

The Chat Proxy Server is designed to manage and route chat messages between users and subject-specific processing services. It supports:

Creating and managing chat sessions
Uploading and referencing files in chats
Logging and querying user/system messages
Proxying messages to subject-specific endpoints via WebSockets
Retrieving response messages through persistent connections

This documentation outlines the data structures, REST API endpoints, file upload process, and WebSocket-based message flow.

Architecture

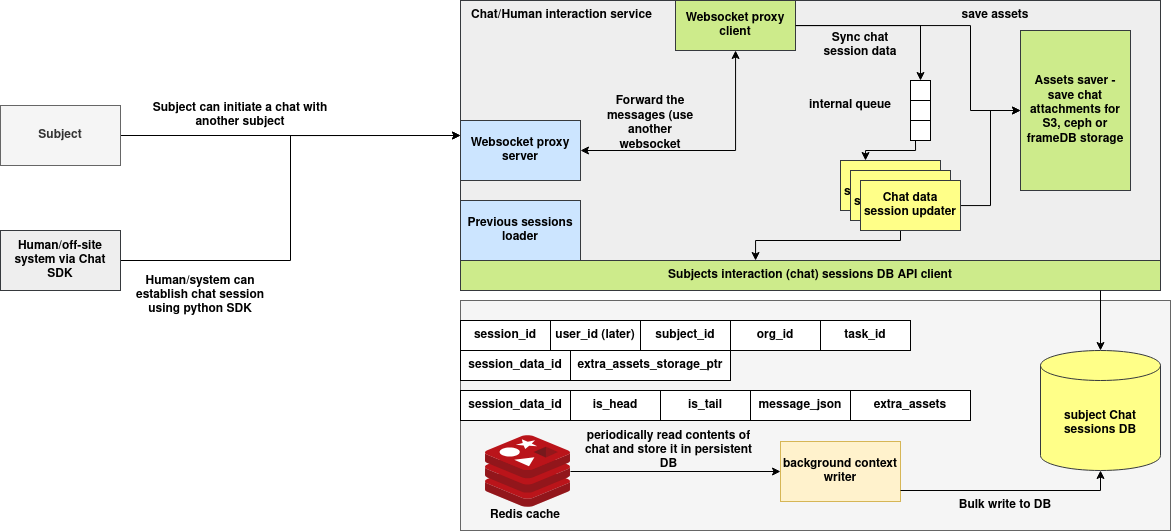

communication-chat

Download Image

System Overview

The Chat Proxy Server provides a real-time, persistent, and extensible messaging layer for interactive communication between subjects (agents or humans) in a distributed AI environment. Designed to support session-based conversational state, the system enables message routing, session lifecycle management, attachment handling, and long-term chat persistence.

It integrates a WebSocket-based messaging proxy, a session updater with Redis caching, and a storage backend to synchronize and archive messages. Each interaction is contextualized per session and can be accessed programmatically via REST APIs or consumed via WebSockets in real time. The system supports both agent-to-agent and human-to-agent messaging workflows.

The architecture ensures scalable, traceable, and multi-modal communication flows across federated environments such as orchestrated AI services, autonomous reasoning agents, or decision-support systems.

Core Services

WebSocket Proxy Server

The WebSocket Proxy Server acts as the entry point for all live chat interactions. It performs the following functions:

Accepts incoming WebSocket connections from clients (humans or systems).
Receives messages in a structured JSON format containing session and subject information.
Forwards the message to the appropriate downstream subject via a persistent internal WebSocket connection.
Returns the response from the subject back to the original client.

This component decouples external message ingress from internal routing, enabling low-latency bi-directional communication.

WebSocket Proxy Client

The WebSocket Proxy Client is responsible for maintaining persistent outbound connections to subject-specific services. For each subject ID, it:

Resolves the subject's WebSocket endpoint using a registry lookup.
Maintains a pool of reusable connections.
Sends incoming messages via .push() method.
Waits for responses and returns them to the server for client delivery.

It ensures message delivery across services without initiating new connections per request.

Chat Data Session Updater

This internal service manages session state synchronization. It:

Queues messages and session updates in memory.
Writes metadata and chat content to Redis for short-term persistence.
Updates session context (e.g., metadata, attachments) in an append-only format.
Invokes the asset saver when files are present.

This component provides consistent session tracking for ongoing conversations.

Previous Sessions Loader

This module retrieves prior chat sessions for a given user or subject. It ensures conversational continuity by:

Fetching chat history from the persistent store.
Preloading recent interactions into memory if necessary.
Enabling context-aware responses from downstream models or agents.

Assets Saver

The Assets Saver handles attachment persistence for each chat message. It supports integration with multiple backend storage systems, including:

AWS S3
Ceph-compatible object stores
FrameDB-based storage layers

This allows rich media (e.g., PDFs, documents) to be referenced in chat messages and stored independently of the core session data.

Redis Cache and Background Context Writer

Chat data is initially buffered in Redis to optimize performance. The system:

Temporarily caches incoming and outgoing messages using session_data_id.
Periodically invokes a background writer to flush the contents to the subject sessions database.
Tags messages with is_head and is_tail flags to denote sequence boundaries.
Tracks structured message_json and extra_assets fields.

This design allows low-latency reads while ensuring persistent storage for long-term analysis or audit.

Subject Chat Sessions DB

This is the primary persistent backend for chat data, supporting:

Session-level metadata (user ID, subject ID, org ID, task ID)
Message-level content with time-ordering
Associated storage pointers (attachments, asset links)

Data is written in bulk from Redis by the context writer, ensuring efficient and reliable persistence.

Data Schemas

`ChatSession` Dataclass

@dataclass
class ChatSession:
    session_id: str = field(default_factory=lambda: str(uuid.uuid4()))
    user_id: str = ''
    subject_id: str = ''
    org_id: str = ''
    session_metadata: Dict[str, Any] = field(default_factory=dict)

Explanation of Fields

Field	Type	Description
`session_id`	`str`	Unique identifier for the chat session (auto-generated UUID)
`user_id`	`str`	ID of the user initiating the session
`subject_id`	`str`	Subject to which the chat is routed
`org_id`	`str`	Organization identifier
`session_metadata`	`dict`	Additional metadata about the session

`ChatMessage` Dataclass

@dataclass
class ChatMessage:
    chat_id: str = field(default_factory=lambda: str(uuid.uuid4()))
    session_id: str = ''
    message_json: Dict[str, Any] = field(default_factory=dict)
    file_urls: Dict[str, str] = field(default_factory=dict)
    type: str = ''  # 'user' or 'system'
    timestamp: int = field(default_factory=lambda: int(time.time()))

Explanation of Fields

Field	Type	Description
`chat_id`	`str`	Unique identifier for the message (UUID)
`session_id`	`str`	Session ID to which the message belongs
`message_json`	`dict`	The actual message payload
`file_urls`	`dict`	Optional mapping of file keys or URLs
`type`	`str`	Message type: `"user"` or `"system"`
`timestamp`	`int`	UNIX timestamp of when the message was created

Flask REST APIs

Create Chat Session

POST /chat/session

Request Body (JSON):

{
  "user_id": "user123",
  "subject_id": "math-ai",
  "org_id": "org789",
  "session_metadata": {}
}

Curl:

curl -X POST http://localhost:7000/chat/session \
     -H "Content-Type: application/json" \
     -d '{"user_id": "user123", "subject_id": "math-ai", "org_id": "org789", "session_metadata": {}}'

Get Chat Session

GET /chat/session/<session_id>

Curl:

curl http://localhost:7000/chat/session/abc123

Update Chat Session

PUT /chat/session/<session_id>

Request Body:

{ "session_metadata": { "topic": "algebra" } }

Curl:

curl -X PUT http://localhost:7000/chat/session/abc123 \
     -H "Content-Type: application/json" \
     -d '{"session_metadata": {"topic": "algebra"}}'

Delete Chat Session

DELETE /chat/session/<session_id>

Curl:

curl -X DELETE http://localhost:7000/chat/session/abc123

Query Chat Sessions

POST /chat/session/query

Request Body:

{ "user_id": "user123" }

Curl:

curl -X POST http://localhost:7000/chat/session/query \
     -H "Content-Type: application/json" \
     -d '{"user_id": "user123"}'

Get Messages by Session

GET /chat/message/session/<session_id>

Curl:

curl http://localhost:7000/chat/message/session/abc123

Get Message by Chat ID

GET /chat/message/<chat_id>

Curl:

curl http://localhost:7000/chat/message/def456

Delete Message by Chat ID

DELETE /chat/message/<chat_id>

Curl:

curl -X DELETE http://localhost:7000/chat/message/def456

Uploading Files

POST /chat/session/<session_id>/upload

Form Field: file (multipart/form-data)

Curl Example:

curl -X POST http://localhost:7000/chat/session/abc123/upload \
     -F "file=@myfile.pdf"

Response:

{
  "success": true,
  "data": {
    "message": "File uploaded successfully",
    "file_path": "abc123/uuid-filename",
    "original_filename": "myfile.pdf"
  }
}

Sending and Receiving Chat Messages Using WebSocket

WebSocket clients can send a message to a subject and receive a response in real-time.

WebSocket Proxy Behavior

The proxy fetches chatURL from: GET <SUBJECTS_REGISTRY>/subjects/get_subject_id?subject_id=<id>
It caches and maintains persistent WebSocket connections per subject
Messages are forwarded using .push()
The server waits for a response and returns it to the client

Example WebSocket Flow

Client sends:

{
  "session_id": "abc123",
  "text": "What is 2 + 2?"
}

Server forwards to subject WebSocket (e.g., ws\://math-subject:8001/ws)

Subject responds:

{
  "response": "The answer is 4"
}

ChatManager:

Logs the request with type "user"
Logs the response with type "system"
Returns the response to client

WebSocket Server Sample (Optional)

You can connect to a local WebSocket server like this:

websocat ws://localhost:8765

And send a JSON payload:

{
  "action": "query_by_session",
  "data": { "session_id": "abc123" }
}

Python Example: Sending a Message via WebSocket Proxy

This example does the following:

Sends a message to the chat proxy server.
The server resolves the subject's WebSocket URL.
It forwards the message and waits for a response.
The user message and the system response are logged in MongoDB.
The response is returned to the user.

Requirements

pip install websockets requests

Python Client Example

import asyncio
import json
import websockets


async def send_chat_message():
    # Replace with the actual WebSocket URL of your chat proxy server
    ws_url = "ws://localhost:8765"

    session_id = "abc123"   # Use your valid session ID
    subject_id = "math-ai"  # Target subject to route the message
    message_text = "What is the integral of x^2?"

    # Construct the payload expected by the WebSocket chat proxy
    message = {
        "session_id": session_id,
        "subject_id": subject_id,
        "message": {
            "text": message_text
        }
    }

    # Connect to the proxy WebSocket server
    async with websockets.connect(ws_url) as websocket:
        # Send the message
        await websocket.send(json.dumps(message))

        # Wait for a response
        response = await websocket.recv()
        response_data = json.loads(response)

        print("Response received:")
        print(json.dumps(response_data, indent=2))


if __name__ == "__main__":
    asyncio.run(send_chat_message())

Sample Output

Response received:
{
  "response": "The integral of x^2 is (1/3)x^3 + C"
}

Notes

This script assumes your proxy WebSocket server accepts messages in a JSON structure like:

json { "session_id": "...", "subject_id": "...", "message": { "text": "..." } }

The ChatManager on the backend will log:
The incoming user message (type: "user")
The outgoing system response (type: "system")
